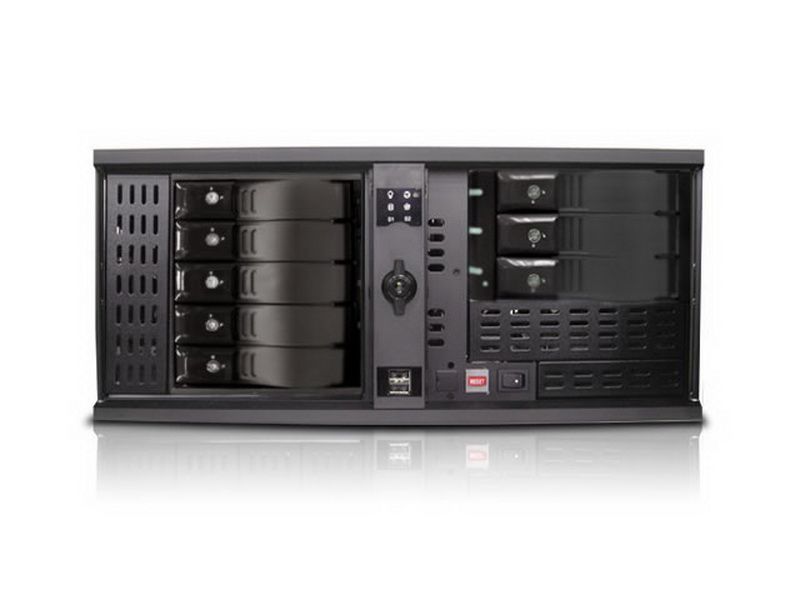

4U Compact Stylish Trayless Rackmount Chassis


  • Power and Alarm Reset Switch
  • Power and HDD LED
  • Removable Air Filter
  • 80mm x1 Cooling Fan
  • Front Access USB2.0 x2
  • Supports SAS/SATA II Hard Drives
  • Trayless HDD Enclosure

iStarUSA 4U industrial rackmount chassis D Storm D-400-7-TLB8SS combines with BPN trayless series to enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 8 storage drives for RAID configuration. D-400-7-TLB8SS provides server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

Model NumberD-400-7-TLB8SS
RoHS Compliance VersionYes
Standard Drive Bays
  • Hot-swap Drive:
  • 8x3.5"
  • 3.5" Drive:
  • 1
  • 3.5" Drive (internal):
  • 1
  • 5.25" Drive:
  • 2
IndicatorsLEDs for Power ON/OFF, HDD, Fan & Alarm
SwitchesPower ON/OFF, System & Alarm Reset
Air FilterRemovable & Washable
SpeakerOptional 0.4W
Material of Front BezelAluminum Alloy
Material of Handle1.2mm SECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel ( Japan Made )
Color of Main ChassisBlack
Front ConnectorFront USB 2.0 x 2 Connector
Backplane InterfaceDiscrete 8 SATA Ports
SecurityFront Bezel (optional)
Optional Front BezelBlack
Dimension (W x H x D)19 x 7 x 20.8 inches
481.8 x 176.8 x 528 mm
Motherboard Size12 x 10 (ATX, micro-ATX)
Cooling Fan [optional]1x80mm [1x80mm]
