4U 8-Bay Stylish Storage Server Rackmount


  • Supports Up to 8 Hard Drives
  • Power Switch
  • Power and HDD LED
  • 120mm x 2 Cooling Fans on Sides
  • Color Tray as Options
  • Front Access USB2.0
  • Supports SATA I/II Hard Drives

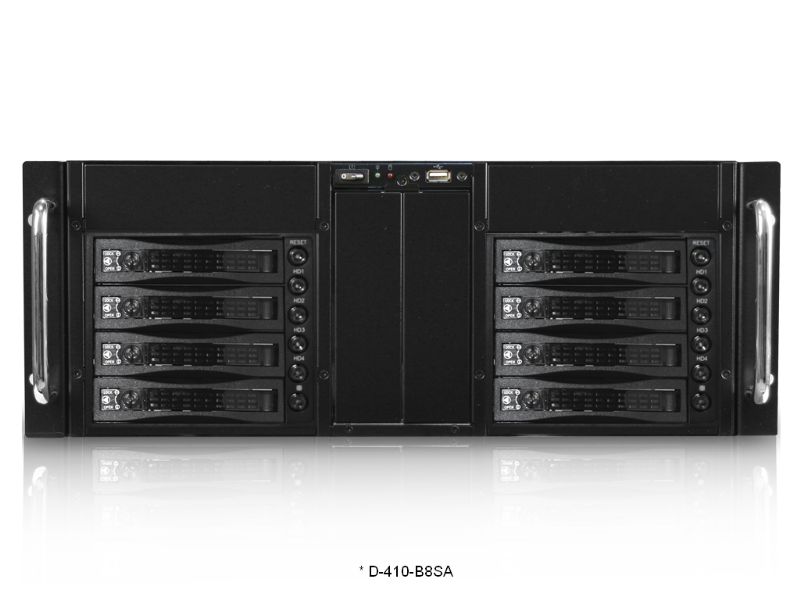

iStarUSA 4U industrial rackmount chassis D Storm D-410-B8SA combines with BPU series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 8 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-B8SA provides server or cluster maximum reliability and performance.

Model NumberD-410-B8SA
RoHS Compliance VersionYes
Standard Drive Bays
  • Hot-swap Drive:
  • 3.5" x8
  • 5.25" Drive:
  • 4
IndicatorsLEDs for Power ON/OFF and HDD
SwitchesPower ON/OFF and System Reset
Material of Main ChassisZinc-Coated Steel
Color of Main ChassisBlack
Front ConnectorFront USB 2.0 x 1 Connector
Backplane InterfaceDiscrete 8 SATA Ports
Dimension (W x H x D)19 x 7 x 25 inches
481.8 x 176.8 x 635 mm
Motherboard Size12 x 13 (E-ATX, ATX, micro-ATX)
Cooling Fan [optional]2x120mm
Download Type File Size (KB) Last Updated
User Manual178907292009
