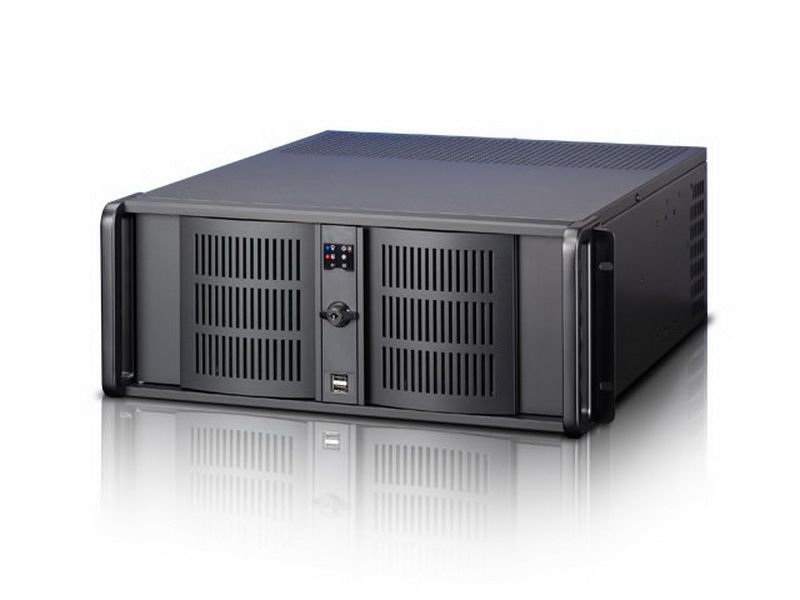

4U 14 Slots Industrial PC Rackmount Chassis


  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • 14 Slot Butterfly Backplane
  • Power and Alarm Reset Switch
  • Power and HDD LED
  • Removable Air Filter
  • 120mm x3 Cooling Fan
  • Front Access USB2.0 x2

The iStarUSA industrial computing chassis D-414L-7, 4U chassis with 14 slot backplane support all size standard add-on cards. D-414L-7 has exceptional thermal cooling system with 3x120mm hot-swappable system fans. Ideal solution for telecommunication, industrial automation, control system, and data requisition application. Additional storage with support of BPU series HDD converter cage to mange large data files and improves transfer bandwidth.

Model NumberD-414L-7
RoHS Compliance VersionYes
Standard Drive Bays
  • 3.5" Drive:
  • 1
  • 3.5" Drive (internal):
  • 1
  • 5.25" Drive:
  • 7
Backplane14 Slots
IndicatorsLEDs for Power ON/OFF, HDD, Fan & Alarm
SwitchesPower ON/OFF, System & Alarm Reset
Air FilterRemovable & Washable
SecurityFront Bezel
SpeakerOptional 0.4W
Material of Front BezelAluminum alloy
Material of Handle1.2mm SECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel ( Japan Made )
Color of Front BezelBlack / Red / Blue / Silver / Gold
Color of Main ChassisBlack
Front ConnectorFront USB 2.0 x 2 Connector
Dimension (W x H x D)19 x 7 x 27.9 inches
481.8 x 176.8 x 708.5 mm
Motherboard Size12 x 13 (E-ATX, ATX, micro-ATX)
Cooling Fan [optional]3x120mm
