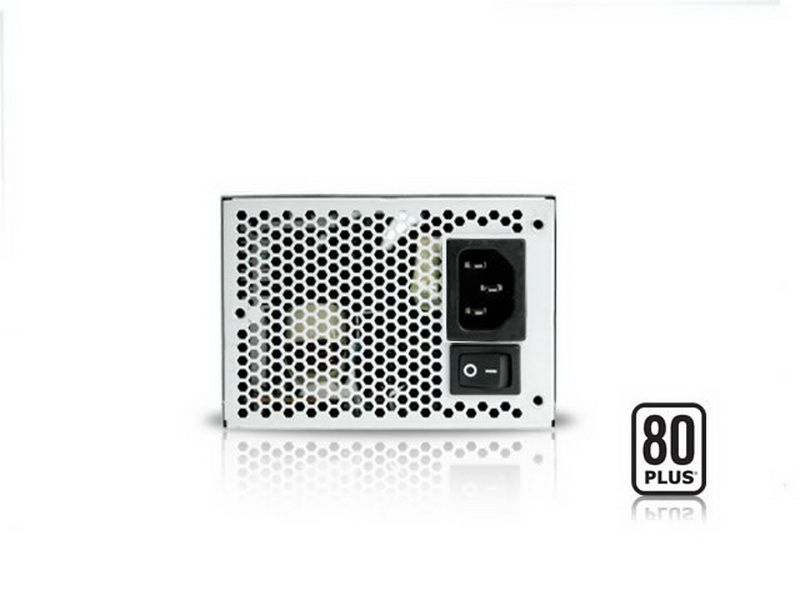

600W 2U 80 Plus Switching Power Supply
- 80 Plus High Efficiency and Reliability
- Short Circuits Protection
- Over Voltage Protection
- Over Current Protection
- 17ms Hold Up Time
iStarUSA 2U power supply series provide high performance in compact form factor. The TC-2U60PD8 supports server, compact PC, and space constrained application. Standard feature includes 80+ efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
| Model Number | TC-2U60PD8 |
| RoHS Compliance Version | Yes |
| Connectors | 24-pin Main: 1
4-pin Molex: 7
4-pin Floppy: 1
8-pin EPS 12V: 1
4+4 pin 12V: 1 |
| Dimension (W x H x D) | 3.94 x 2.76 x 9.45 inches
100 x 70 x 240 mm |
| Main Connector | 24 Pin |
| 12V Connector | 8-Pin / 4-Pin |
| Download Type |
File Size (KB) |
Last Updated |
| Spec Sheet | 568 | 07242010 |
| Voltage |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| Max Load |
24A |
24A |
48A |
0.5A |
2.5A |
| Min Load |
0.5A |
0.5A |
1A |
- |
- |
| Regulation |
±0% |
±5% |
±5% |
±0% |
±5% |
| Ripple(mV) |
50 |
50 |
120 |
120 |
50 |
