550W PS2 Mini Redundant Power Supply
- Universal Input, Active PFC
- MTBF > 100,000 Hours
- SCP (Short Circuit Protection)
- External OCP (Over Current Protection)
- OCP (Over Current Protection) / module
- OVP (Over Voltage Protection)
- OVP (Over Voltage Protection) / module
- Power Status LED on Module
- Power Failure Alarm & Signals
- Remote Sensor on +5v & +3.3V
- Industrial DIN-Connector for Reliability
- Backward Compatibility, -5V Available
- Automatic Thermal Control (reduce Fan Speed)
- Industrial Japanese components 40 degrees temperature
- Efficiency: 74% at full load

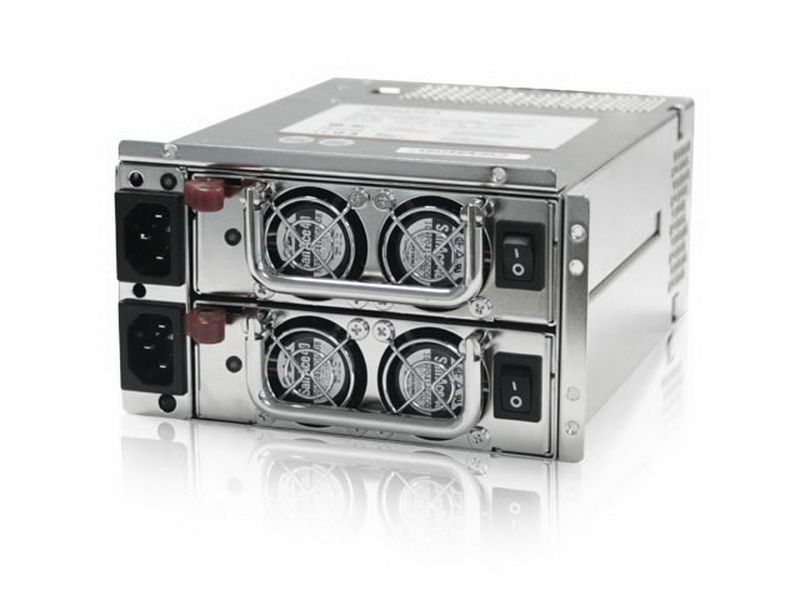

iStarUSA dual AC input Mini Redundant Power Supply IS-550R8P. It offers your server and workstation zero down time with full 550w power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. Standard PS2 form factor fits most ATX or 4U chassis. A good start for your mission critical system integrations.
| Model Number | IS-550R8P |
| RoHS Compliance Version | Yes |
| Efficiency | 74% |
| Noise Level | 27 ~ 37 dB |
| Connectors | 20+4 Pin x 1
8 Pin x 1
4 Pin x 1
6 Pin x 2
Molex x 8
Floppy x 2 |
| Dimension (W x H x D) | 5.91 x 3.35 x 7.83 inches
150 x 85 x 199 mm |
| Main Connector | 24 Pin |
| 12V Connector | 8-Pin / 4-Pin |
| Last Updated |
FAQ |
| 8/27/2008 | What are the functionalities of orange/black, yellow/black, and blue/black cables? + Show Answer Orange/black cable is total PFD signal (TTL signal, Power Failure Detection). It indicates total power condition.
Yellow/black cable is PW1 (power module 1) PFD signal (TTL), normal High and failure Low.
Blue/black cable is PW2 (power module 2) PFD signal (TTL), normal High and failure Low. |
| Voltage |
+3.3V |
+5V |
+12V |
-12V |
-5V |
+5Vsb |
| Max Load |
24A |
30A |
41A |
1A |
0.5A |
2A |
| Min Load |
- |
- |
- |
- |
- |
0.1A |
| Regulation |
±0% |
±5% |
±5% |
±0% |
±5% |
±5% |
| Ripple(mV) |
50 |
50 |
120 |
120 |
50 |
50 |
