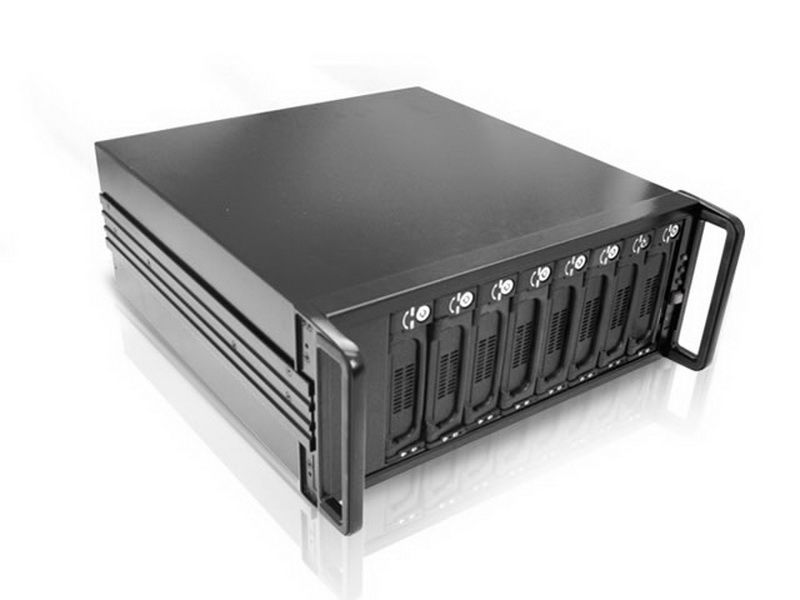

4U 8-bay SATA eSATA JBOD Chassis 500W PSU


  • Supports SATA I/II (1.5/3 Gbps)
  • Up to 8 Hot-Swappable 3.5" Drive Trays
  • LED Indicators for Power and Activity on Each HDD Tray
  • 120mm x 1 Cooling Fan for Ventilation
  • 8 x eSATA Interface for Easy Connection

dAGE408U20T7-ES is an external 4U-8 bay hot-swappable SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 8 SATA drives for 1/0/5/JBOD RAID configuration. This 4U-8 Bay external SATA JBOD is designed with 8 eSATA connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. dAGE408U20T7-ES provides maximum storage and performance to high density storage system.

Model NumberdAGE408U20T7-ES
RoHS Compliance VersionYes
Host Interface8 eSATA Connectors
HDD InterfaceSATA I/II
Hot-SwapBoth on Host and Device
LED DisplayLED for Power On/Off, HDD
Power Supply500W single psu
(with 400W redundant psu model: dAge408U20T7-ES-R)
Cooling1 x 120mm Cooling Fan
MaterialChassis: 1.2 mm SECC Zinc-Coated Steel
Dimension (W x H x D)19 x 7 x 20 inches
482.6 x 177.8 x 508 mm
cAGE-4ES2MSExternal miniSAS to 4 eSATA Cable
9690SA-8E3WareSAS Controller
3085AdaptecSAS Controller
ARC-1220MLArecaSATA Controller
ARC-1221XArecaSATA Controller
ARC-1680XArecaSAS Controller
RocketRAID 2322HighpointSATA Controller
RocketRAID 3522HighpointSATA Controller
SAS3801XLSISAS Controller
