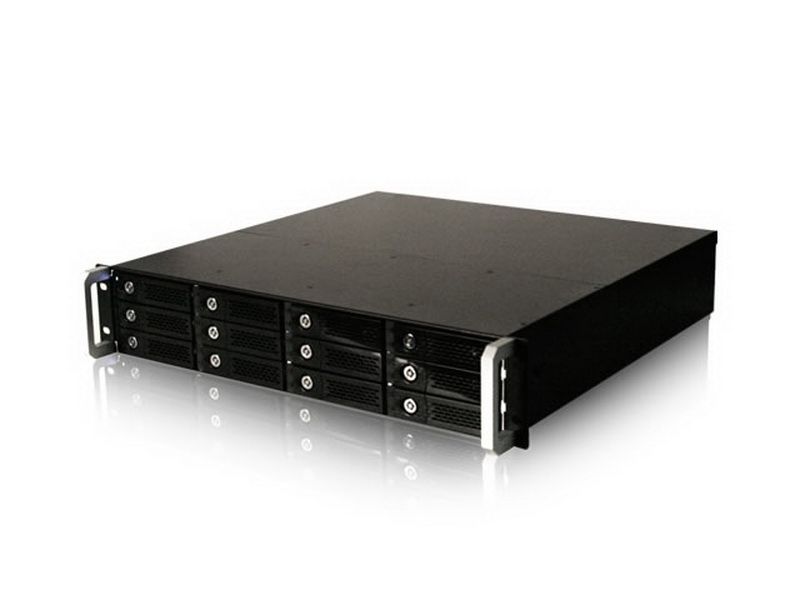

2U 12-bay PCI-Express Rackmount JBOD Chassis
- Supports SAS/SATA (3Gbps)
- Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm
- LED indicators for power and activity on each HDD tray
- Individual key lock of each HDD tray for physical security
- Dual Hot Swappable Power Supplies
- Backplane Design for up to 12 Removable SAS/SATA Drive Trays
- External PCI-e (PCI-Express) x8 Host Interface
- External 2U-12 Bay Rack-mount Chassis
With the innovative architecture, mAGE212U40-PCI-E is designed to plug any standard SAS or SATA PCI-e Raid controller directly into its internal PCI-e slot and use its high speed external PCI-Express x8 (2GBps) as the host interface. mAGE212U40-PCI-E is an external 2U-12 Bay Hot-Swap SAS/SATA Rack-mount Enclosure. It provides users a most big storage capacity expansion solution for up to 12 SAS or SATA HDD and high performance external data storage solution for HD of 1080p video editing or any high resolution video platform. This 2U 12 Bay external SAS/SATA JBOD is designed with external PCI-e x 8 interface brings users an easy installation and enjoy fast data transmission experience.
| Model Number | mAGE212U40-PCI-E |
| RoHS Compliance Version | Yes |
| Host Interface | PCI-e x 8 |
| HDD Interface | SAS/SATA |
| Hot-Swap | Both on Host and Device |
| LED Display | Green - Power on indicator
Blue - Busy (HDD Accessing) indicator |
| LED Display for Environmental Monitoring | POWER on LED - white
FAN normal – green; fail – red (too slow rpm or stop)
TEMP normal – green; over 55°C – red
(We strongly recommend customers to replace a new fan ASAP after the fan failed) |
| Material | Heavy-duty cold-rolled steel |
| Power Supply | 400W single psu (Server-grade)
(with 400W redundant psu model: mAge212U40-PCI-E-R) |
| Cooling | 60mm Fan x 2 |
| O.S. Support | OS Independent |
| Packaging Information | Enclosure x 1
HDD Tray x 12
PCI-e x 8 Adapter Card x 1
Power Cord x 1
Manual CD-ROM x 1
Hard Disk Drive mounting screw x 48
Key for HDD tray x 2 |
| Dimension (W x H x D) | 19 x 3.5 x 23.5 inches
482 x 88.5 x 597 mm |
| Download Type |
File Size (KB) |
Last Updated |
| Test Report | 1505 | 11192008 |
| cAGE-AAM1MI-H | Internal mini SAS to 4 SATA Cable |
| cAGE-AAMMMI-H | Internal mini SAS to Internal mini SAS Cable |
| 9650SE-12ML | 3Ware | SATA Controller |
| 9650SE-16ML | 3Ware | SATA Controller |
| 9650SE-24M8 | 3Ware | SATA Controller |
| 31205 | Adaptec | SAS Controller |
| 31605 | Adaptec | SAS Controller |
| ARC-1230 | Areca | SATA Controller |
| ARC-1231ML | Areca | SATA Controller |
| ARC-1260 | Areca | SATA Controller |
| ARC-1261ML | Areca | SATA Controller |
| RocketRAID 2340 | Highpoint | SATA Controller |
