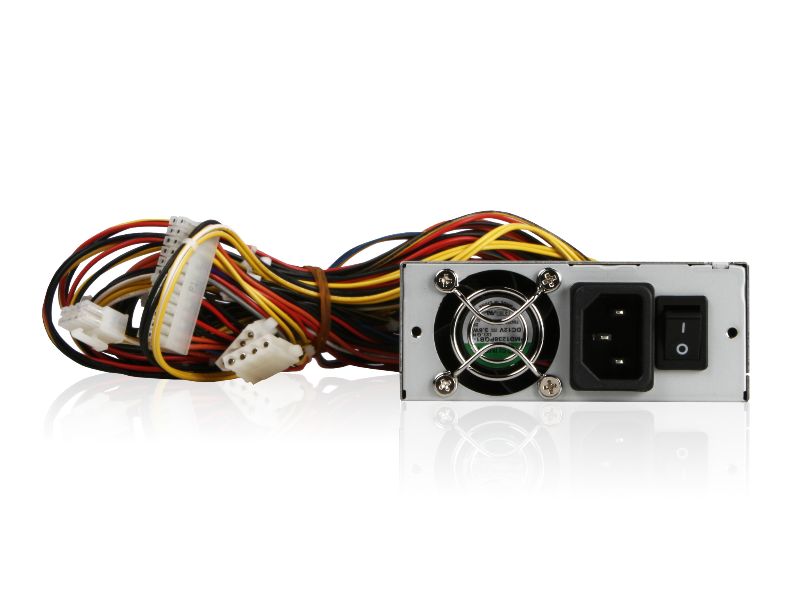

1U 500W EPS12V ATX Switching Power Supply
- Complied with EPS12V Standard
- 100% Hi-pot, ATE, and Burn-in Tested
- Output Over Voltage, Short Circuit, and Over Current Protection
- Thermal Fan Speed Control Function
- Compatible with European Union Directive 2002/95/EC (RoHS)
- Active Power Factor Correction (PFC) Meet EN61000-3-2
- Minimum Efficiency 70%
Introduce the industrial graded TC-1U50 1U 500W switching power supply. Design to fit perfectly into your 1U rackmount chassis. Feature such as thermal fan speed control, triple circuit protections, and Active PFC.
| Model Number | TC-1U50 |
| RoHS Compliance Version | Yes |
| Connectors | 24pin x 1
4pin 12V x 1
8pin EPS x 1
4pin Mole x x 5
4pin Floppy x 1 |
| Dimension (W x H x D) | 3.94 x 1.59 x 9.84 inches
100 x 40.5 x 250 mm |
| Main Connector | 24 Pin |
| 12V Connector | 8-Pin / 4-Pin |
| Voltage |
+3.3V |
+5V |
+12V |
+12V1 |
+12V2 |
+12V3 |
-12V |
+5Vsb |
| Max Load |
30A |
30A |
48A |
15A |
15A |
15A |
0.8A |
2A |
| Min Load |
0.2A |
0.2A |
0.2A |
0.2A |
0.2A |
0.2A |
- |
- |
| Regulation |
±0% |
±5% |
±5% |
±5% |
±5% |
±5% |
±0% |
±5% |
| Ripple(mV) |
50 |
50 |
120 |
120 |
120 |
120 |
120 |
50 |
