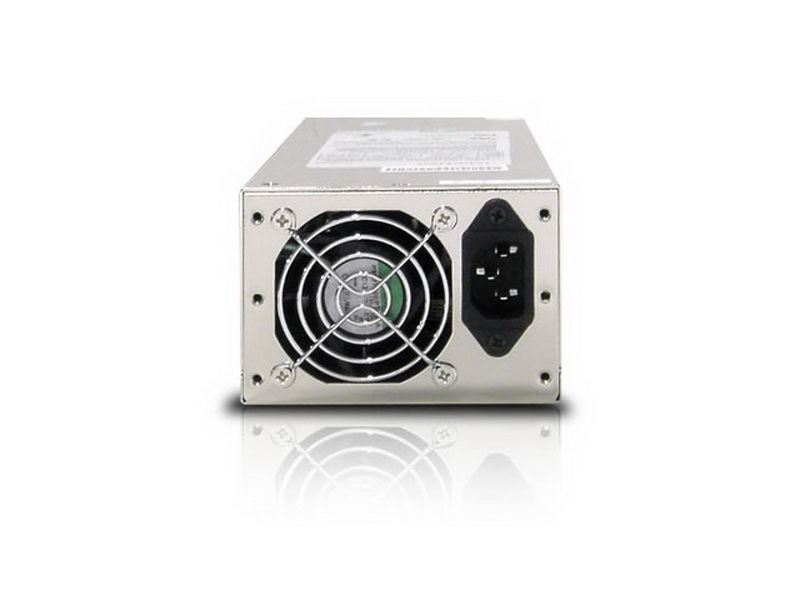

550W 2U Switching Power Supply


  • Universal AC Inputs for EU and Asia
  • PCI-Express Connector Support High End Graphic Card
  • 16ms Hold Up Time
  • Nickel Plated enclosure to provide Corrosion Resistance
  • Active PFC for High Efficiency
  • Short Circuits Protection
  • Over Voltage Protection
  • Over Power Protection

Introduce the industrial graded TC-2U/55P Series power supply. Design to power your high performance and compact 2U rackmount system. Total power of 550 watts, TC-2U/55P equipped with 60mm fan cooling System, triple circuit protections and Active PFC with universal inputs. TC-2U/55P offer unswerving performance for your 2U system.

Model NumberTC-2U/55P
RoHS Compliance VersionYes
Connectors24-pin: 1
4-pin Molex: 8
4-pin Floppy: 1
6-pin PCI-e: 1
8-pin EPS 12V: 1
4-pin 12V: 1
Dimension (W x H x D)3.94 x 2.76 x 10.04 inches
100 x 70 x 255 mm
Main Connector24 Pin
12V Connector8-Pin / 4-Pin
Download Type File Size (KB) Last Updated
Datasheet127511012008
Acoustics Report38610052010
Power Supply Connectors Guide391311252009
Spec Sheet8304192008
Voltage +3.3V +5V +12V -12V -5V +5Vsb
Max Load 28A 30A 40A 0.8A 0.3A 2A
Min Load 1A 1A 1A 0.1A 0.1A 0.1A
Regulation ±0% ±5% ±5% ±0% ±5% ±5%
Ripple(mV) 50 50 120 120 50 50
